1x 2mm carbon fiber true x base plate (107 mm motor to motor)
1x top plate (nylon copa) 1x top plate whoop (nylon copa)
1x Caddx vista adapter/ VTX holder (nylon copa)
1x Top mount canopy (analogue or digital) tpu
2x L motor bumpers (tpu)
2x R motor bumpers (tpu)
4 x 15mm nylon m2 standoff
4X m2 8mm hex bolt
4x m2 10mm hex bolt
2S 75 max grams 8500- 8000KV motor
3s 110 max grams 5500-6000kv motor
4s 145 max grams 5000-4500kv motor

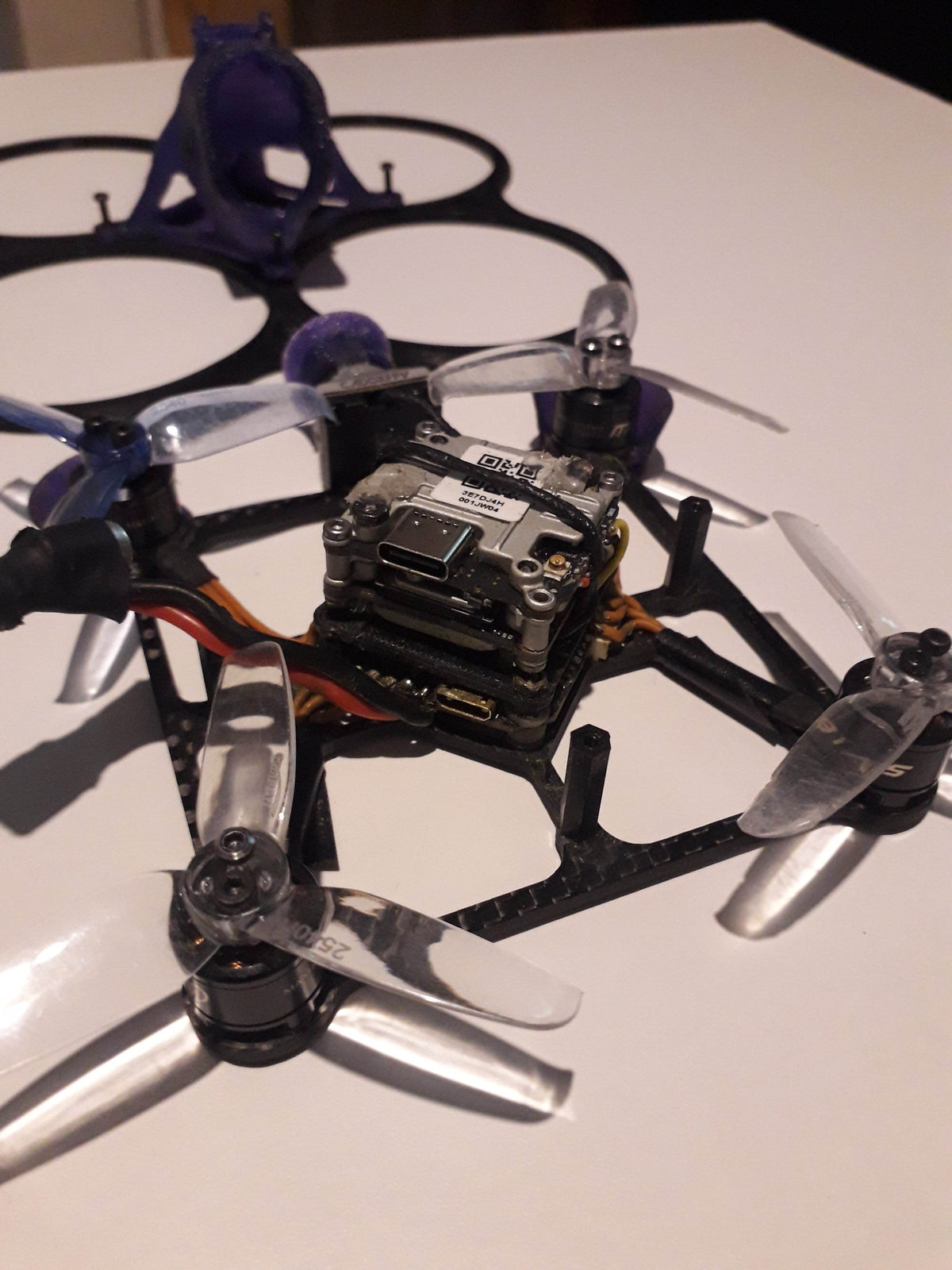

Parts and constraints 25.5x25.5- 26x26 whoop or 16x16 flight controller mounting 9x9 motor pattern for 11xx, 12xx motors (the lighter the better)

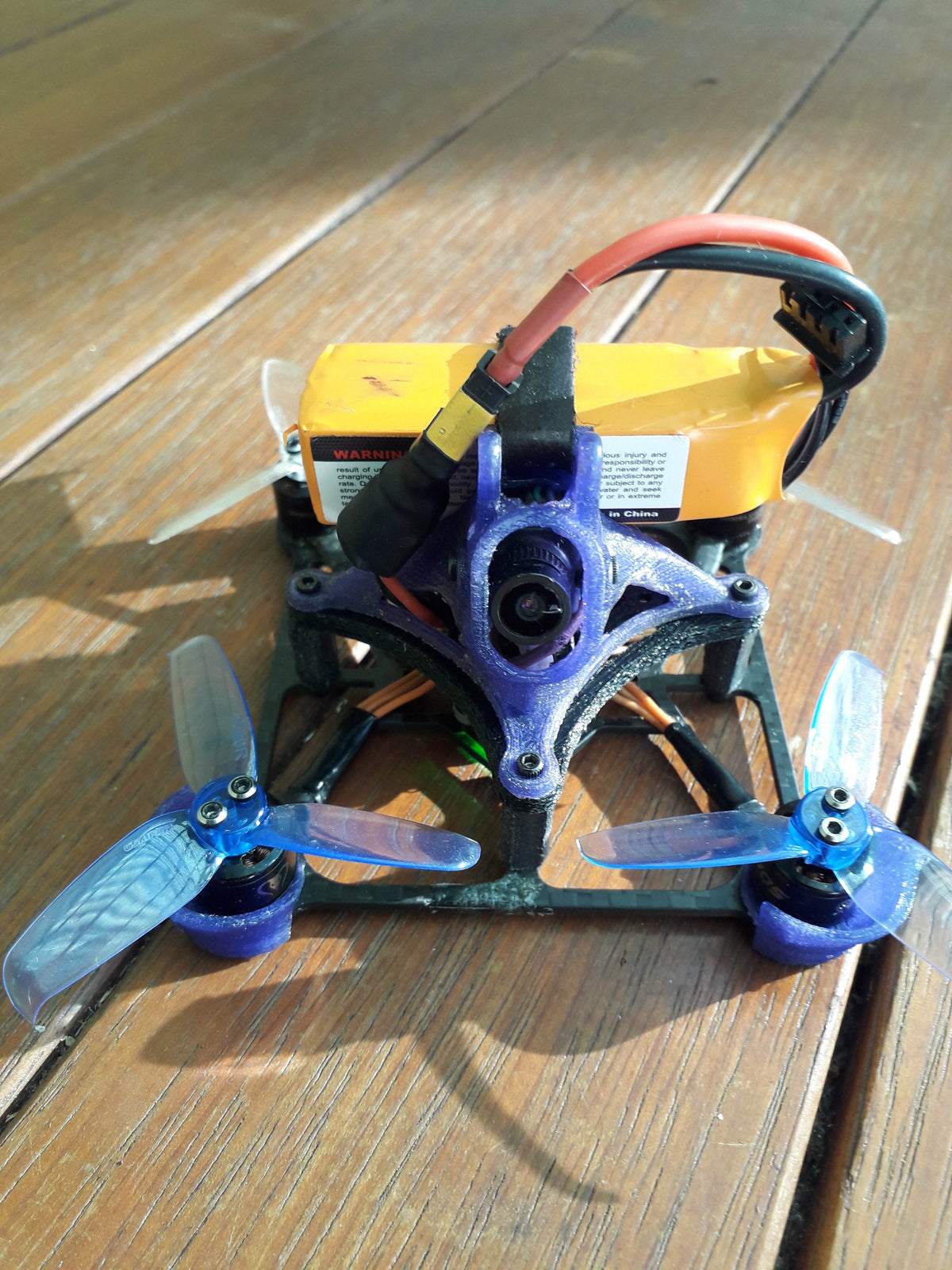

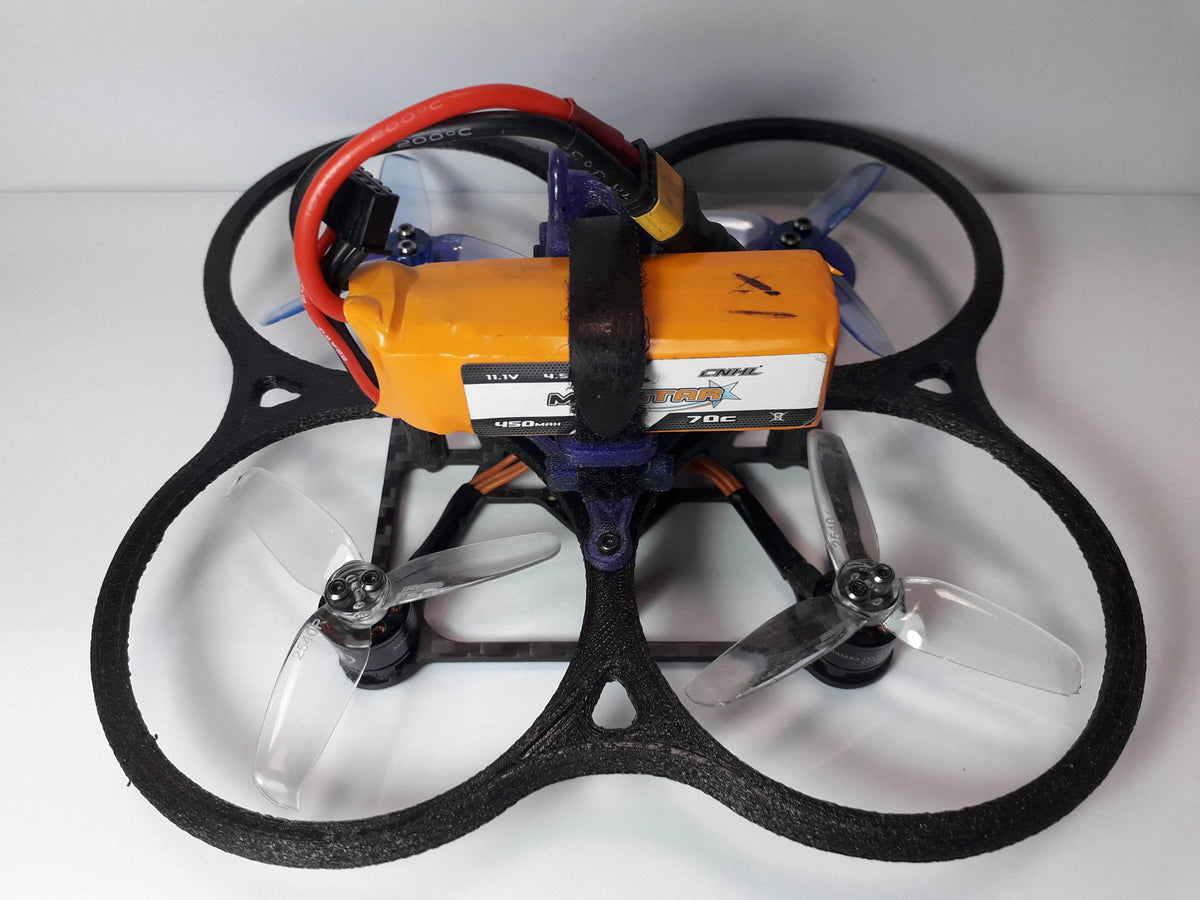

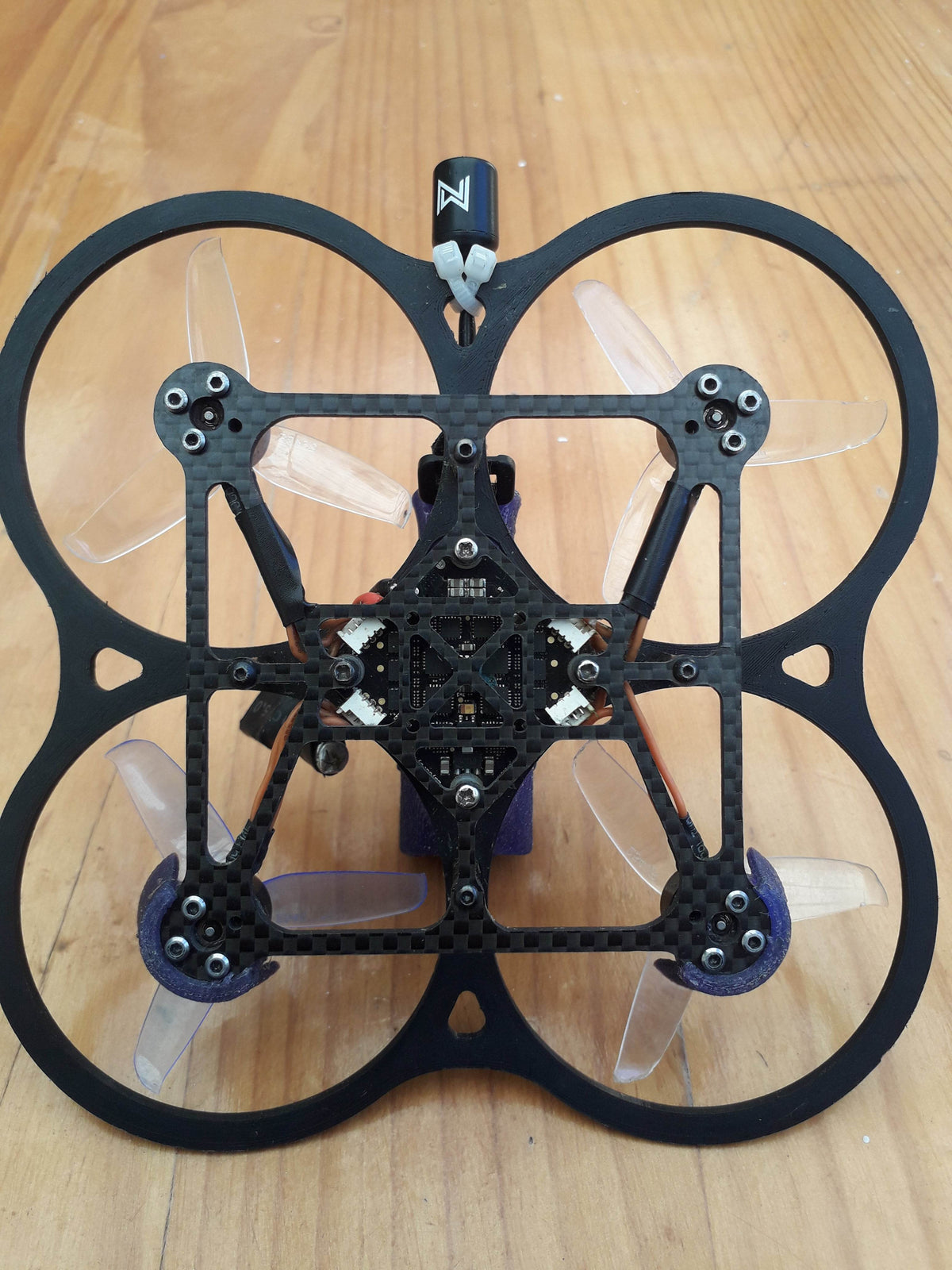

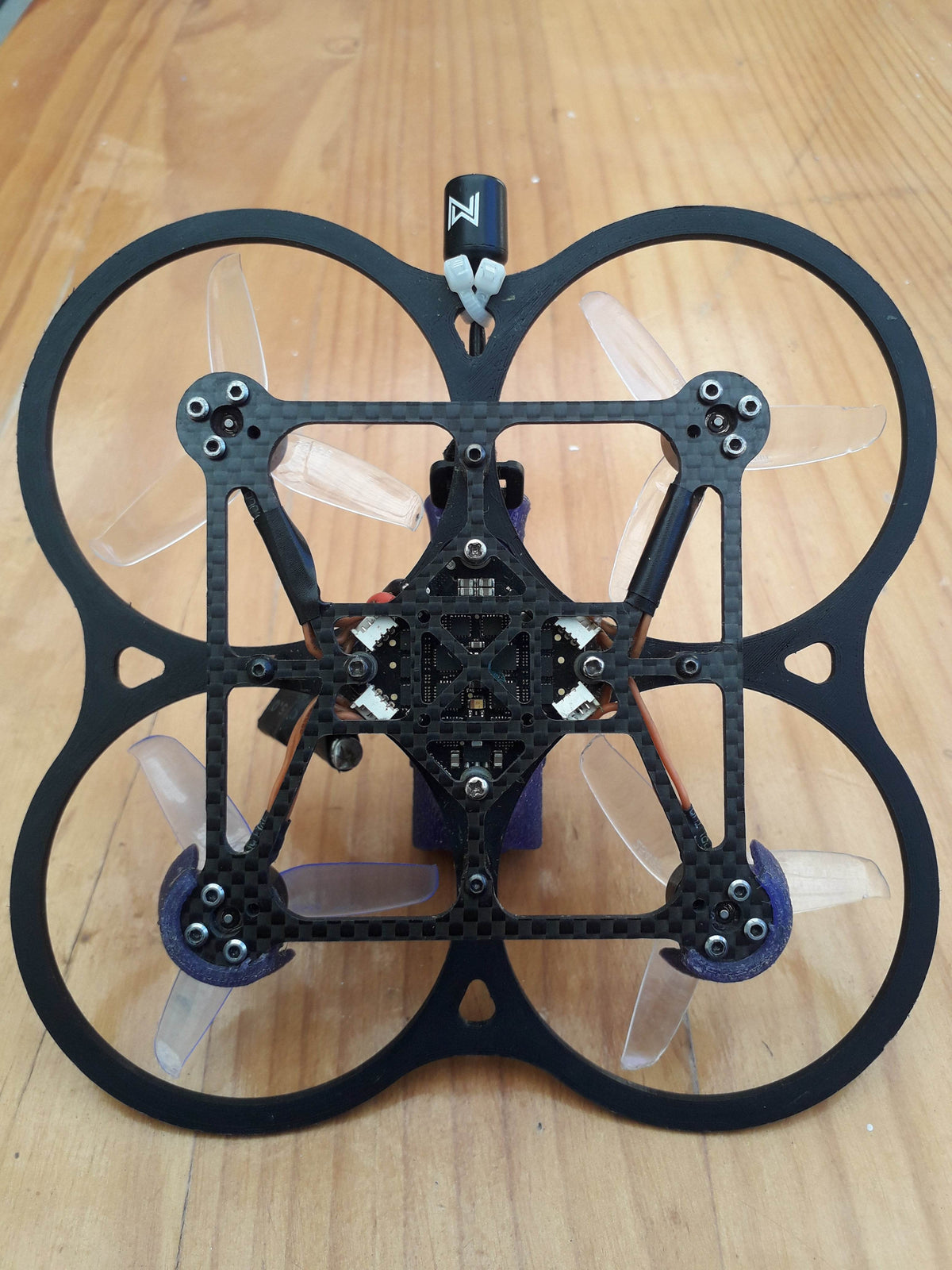

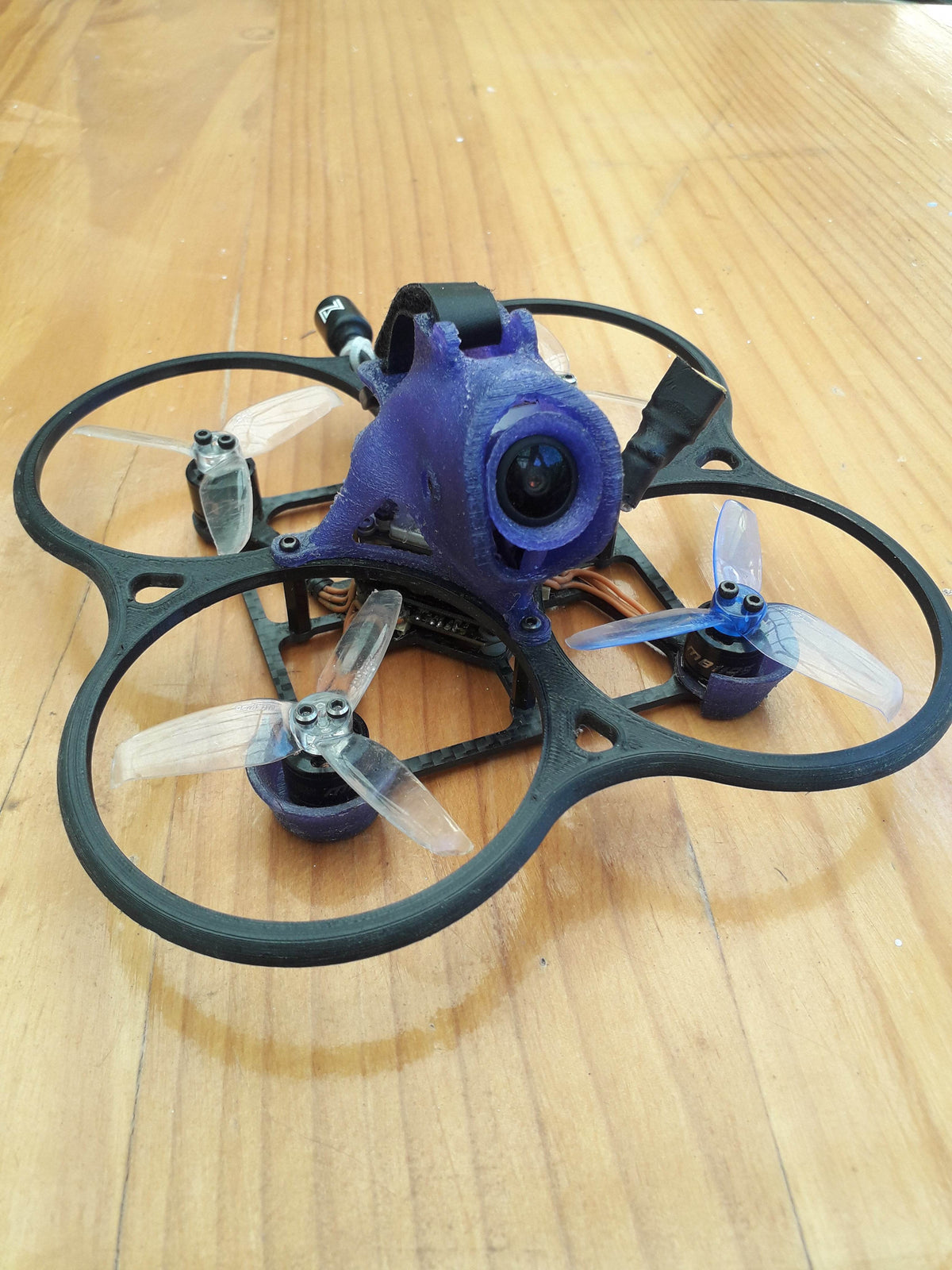

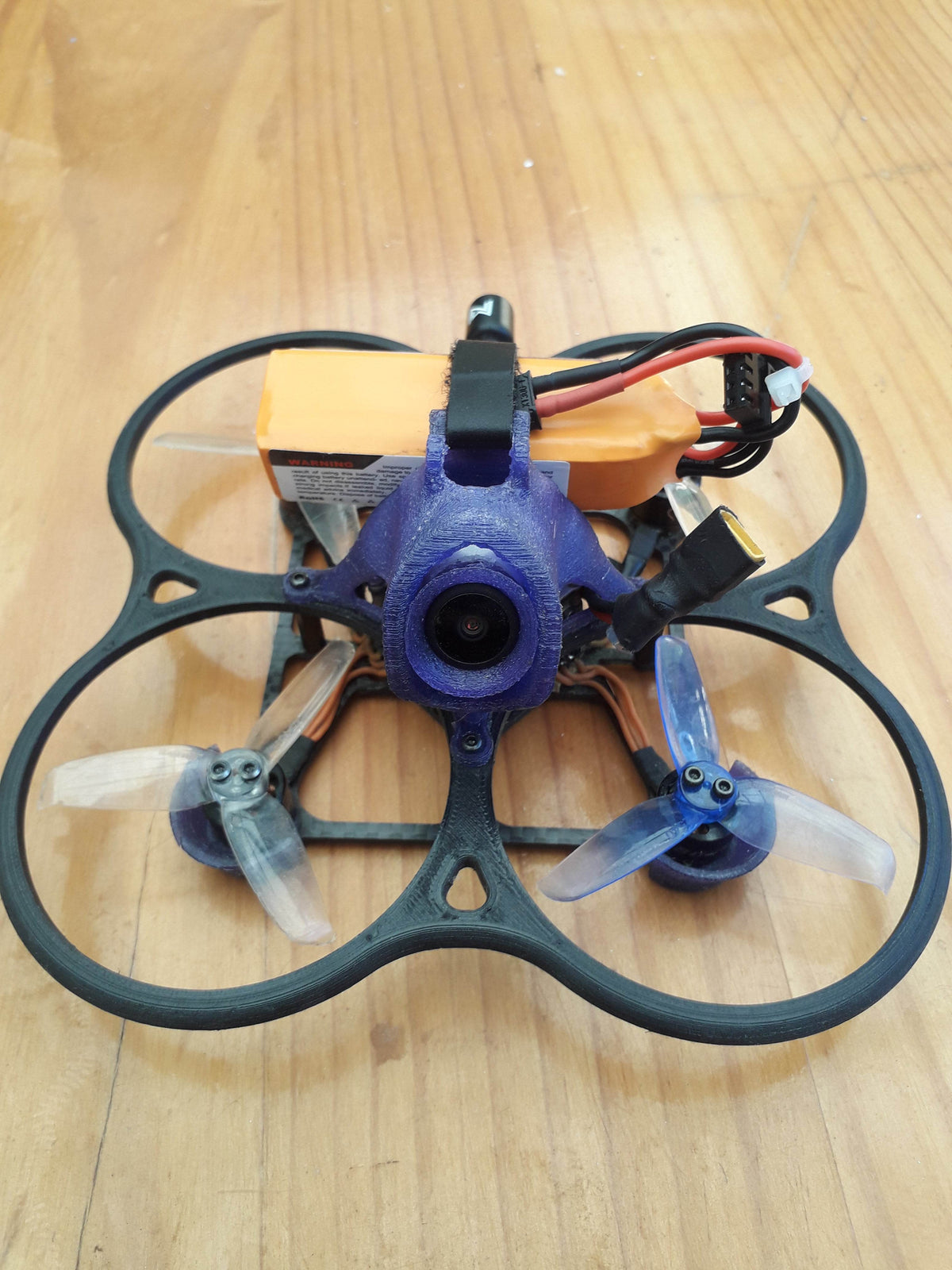

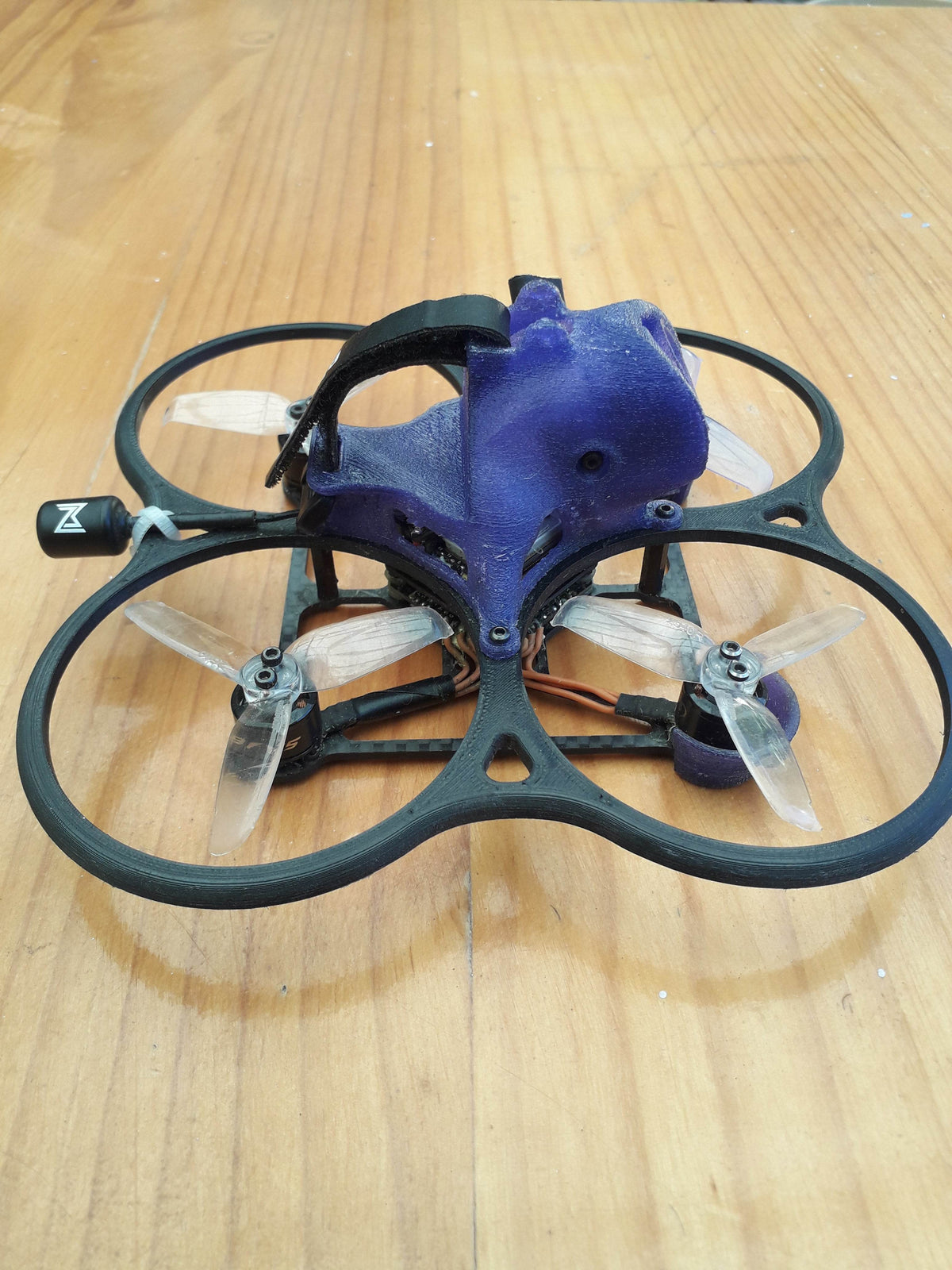

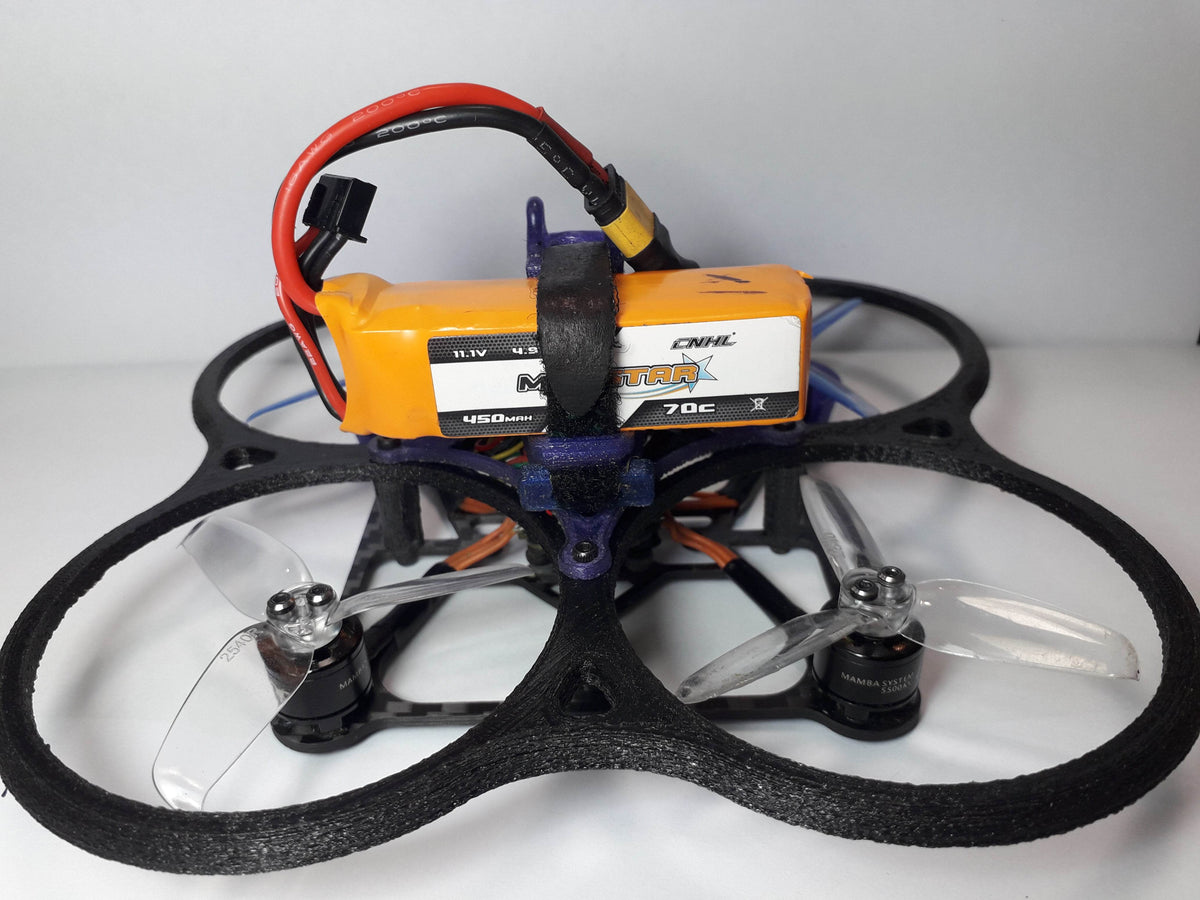

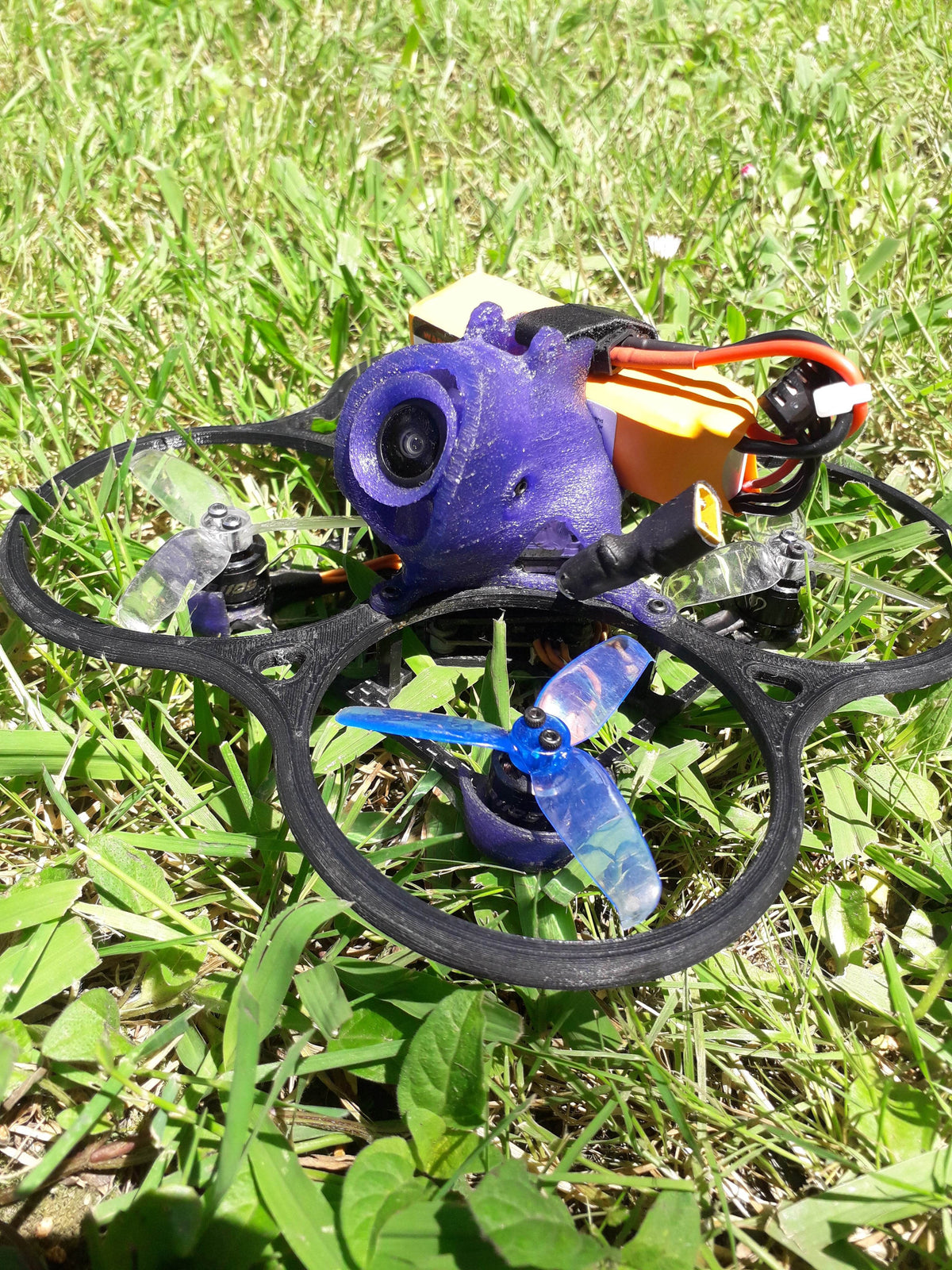

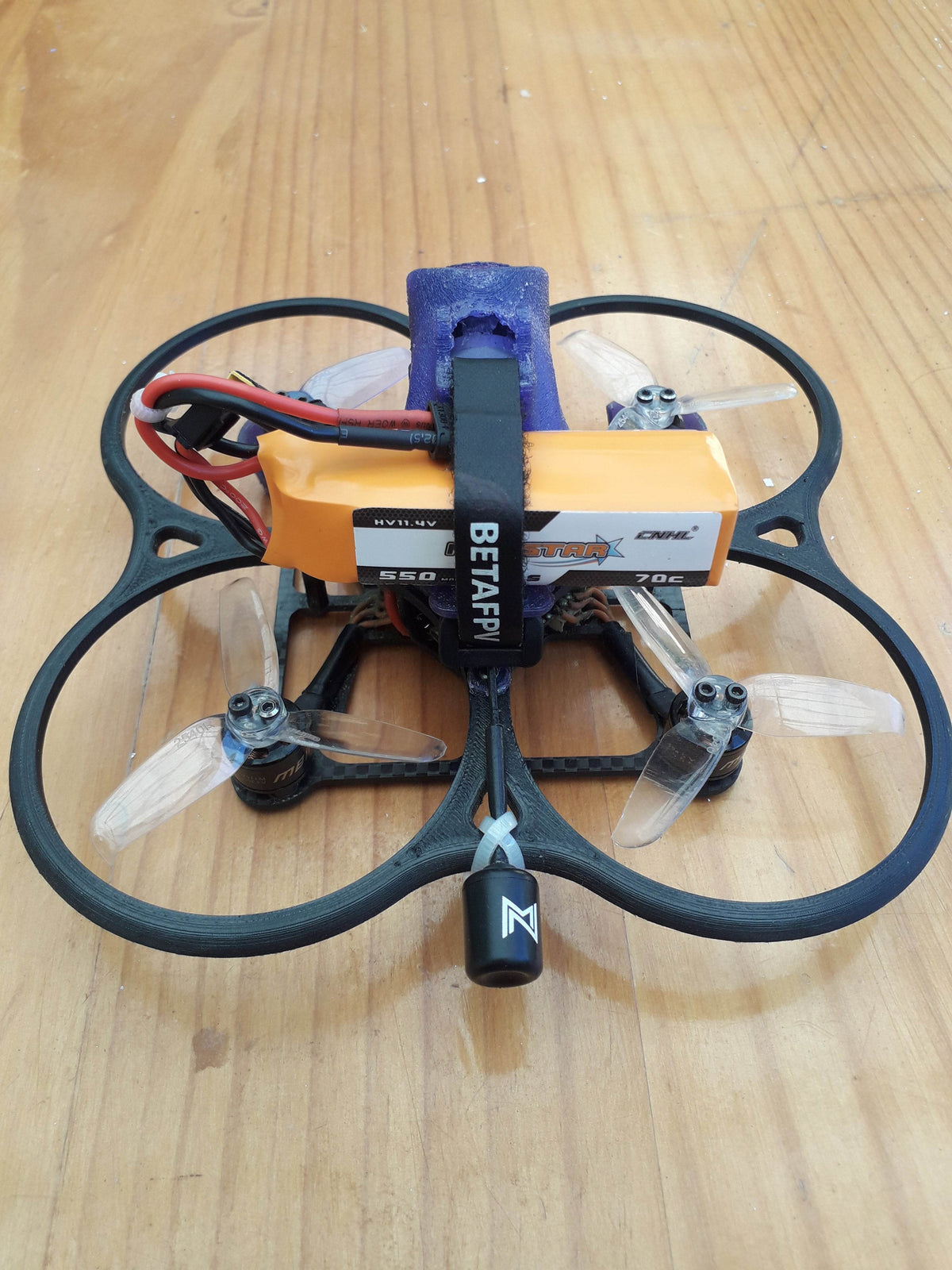

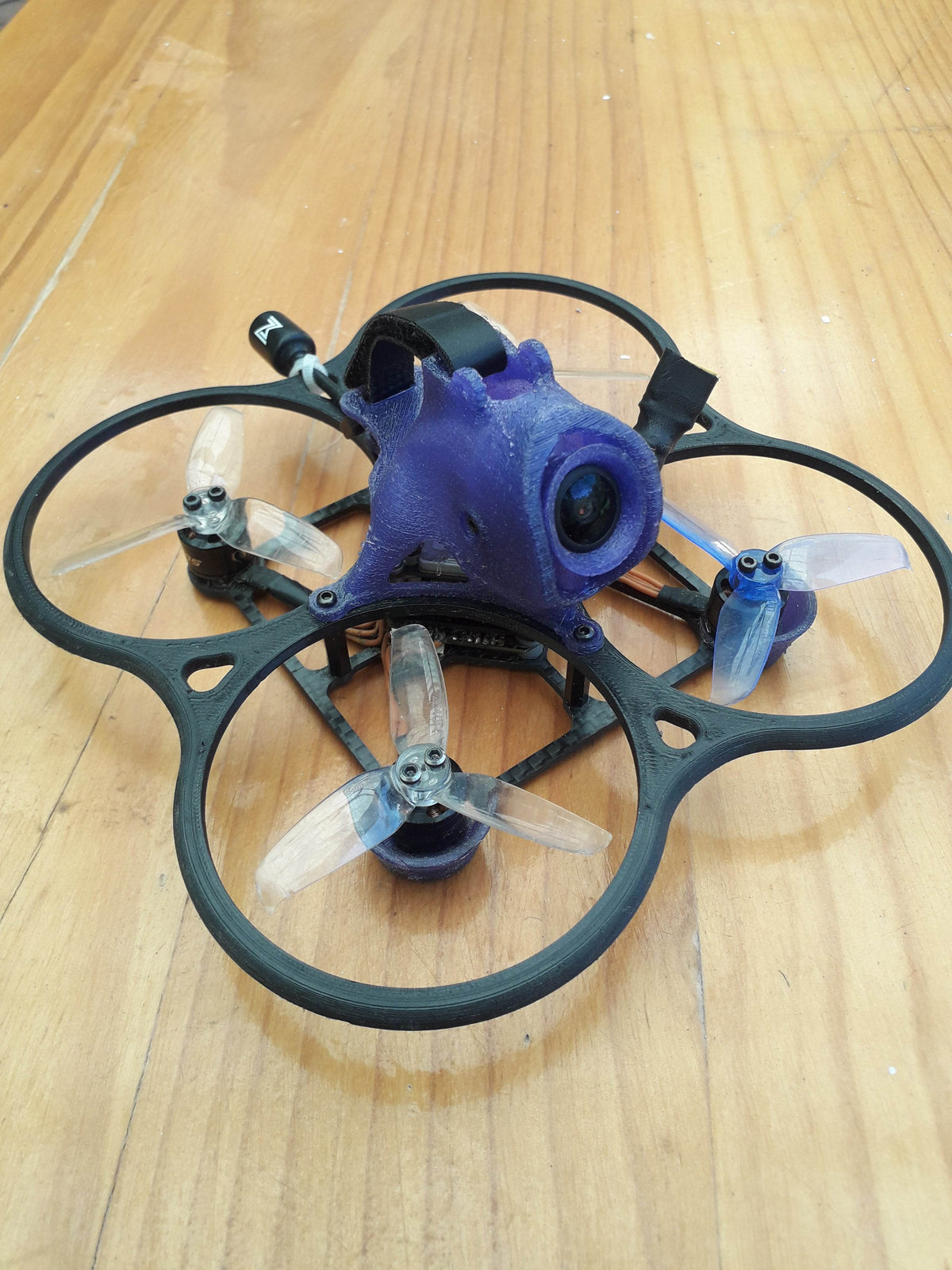

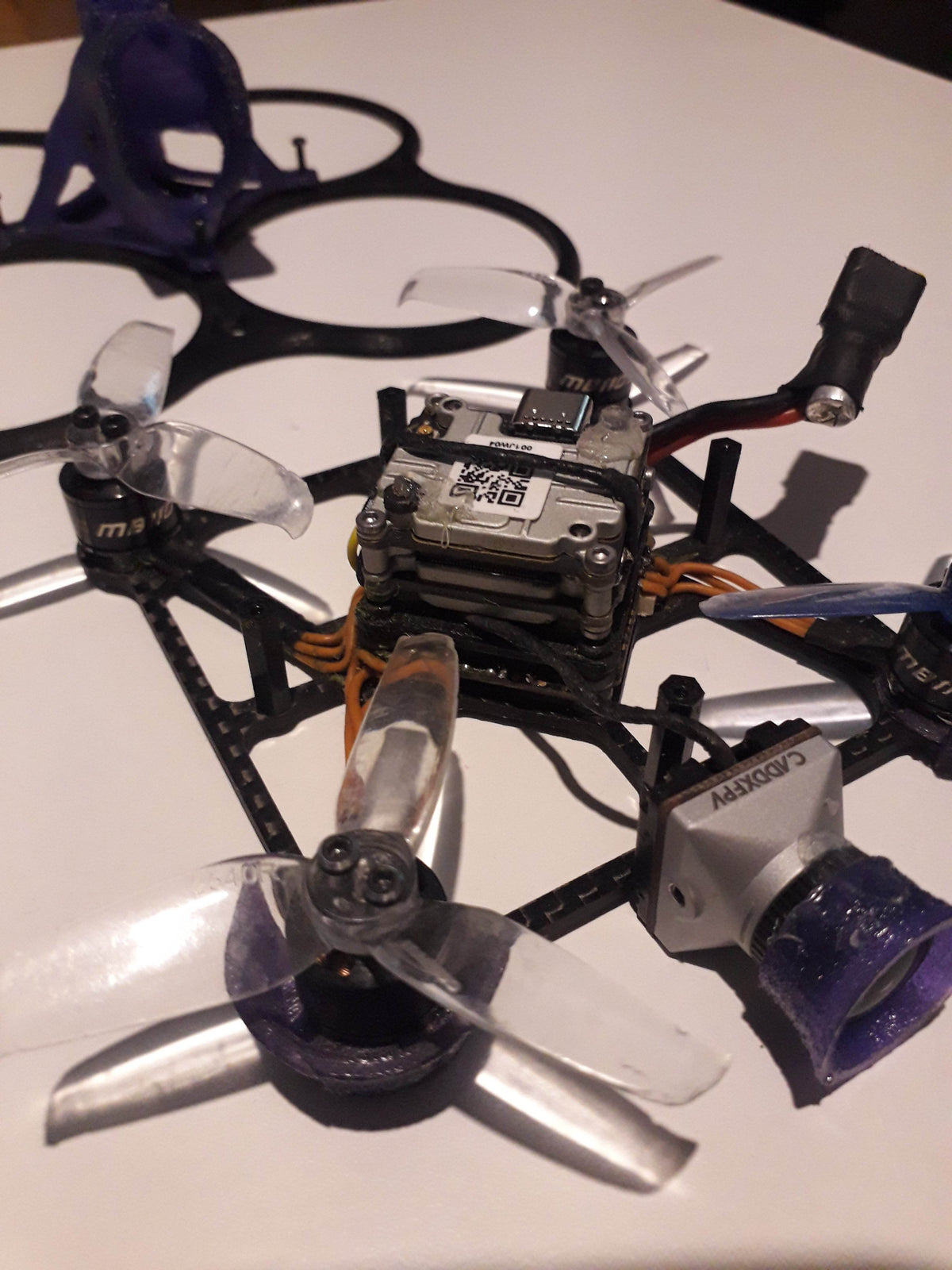

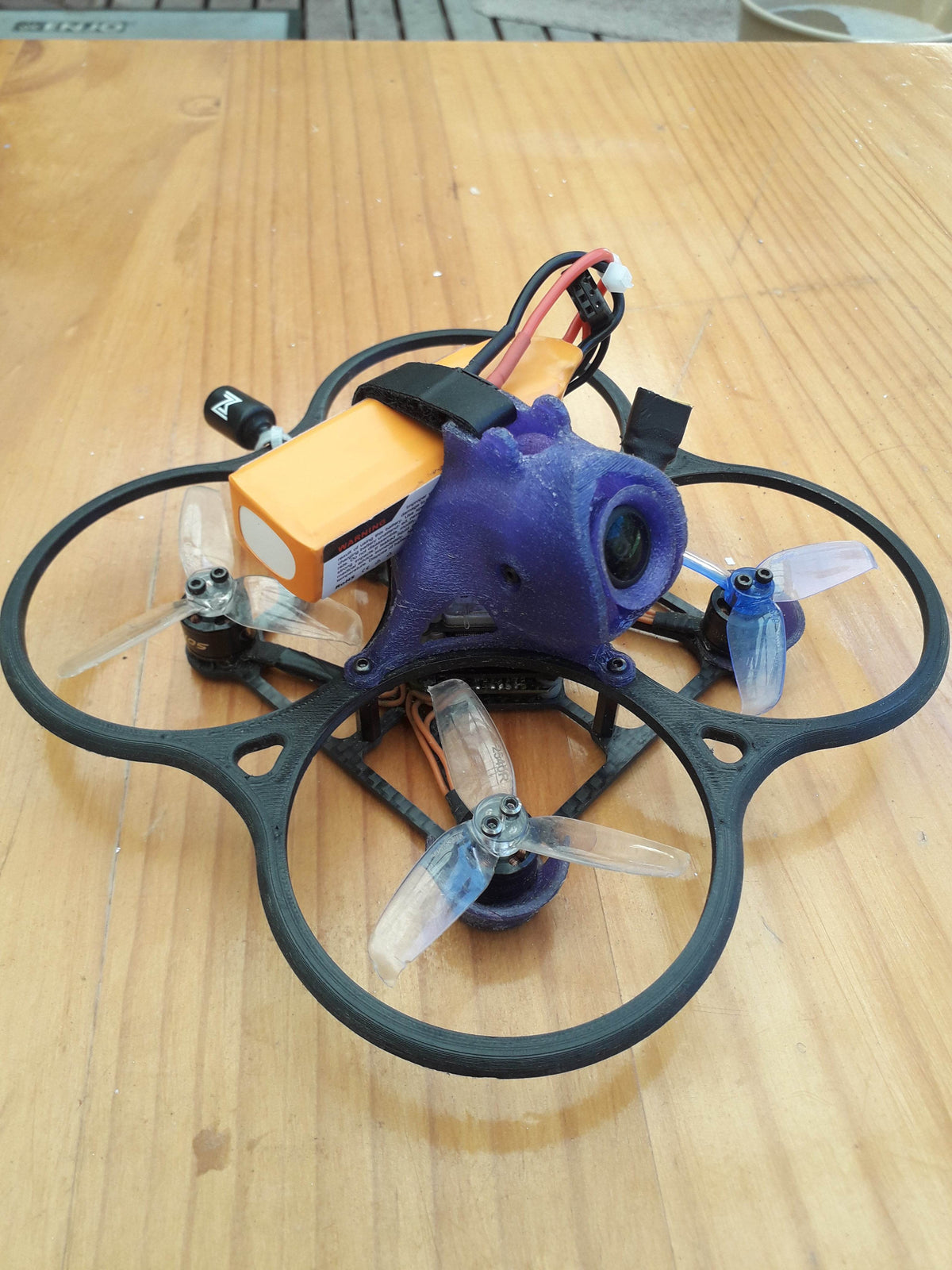

3 blade, 2.5-inch propellers Nano RX (1 gram or less) Nano VTX (with mounting holes will make a cleaner/easier build) e.g. HGLRC Zeus Nano 14x14 Nano FPV camera description The frame can be a standard quad or an outdoor (big whoop) capable of freestyle. with 360-degree prop protection made from strong nylon copa.

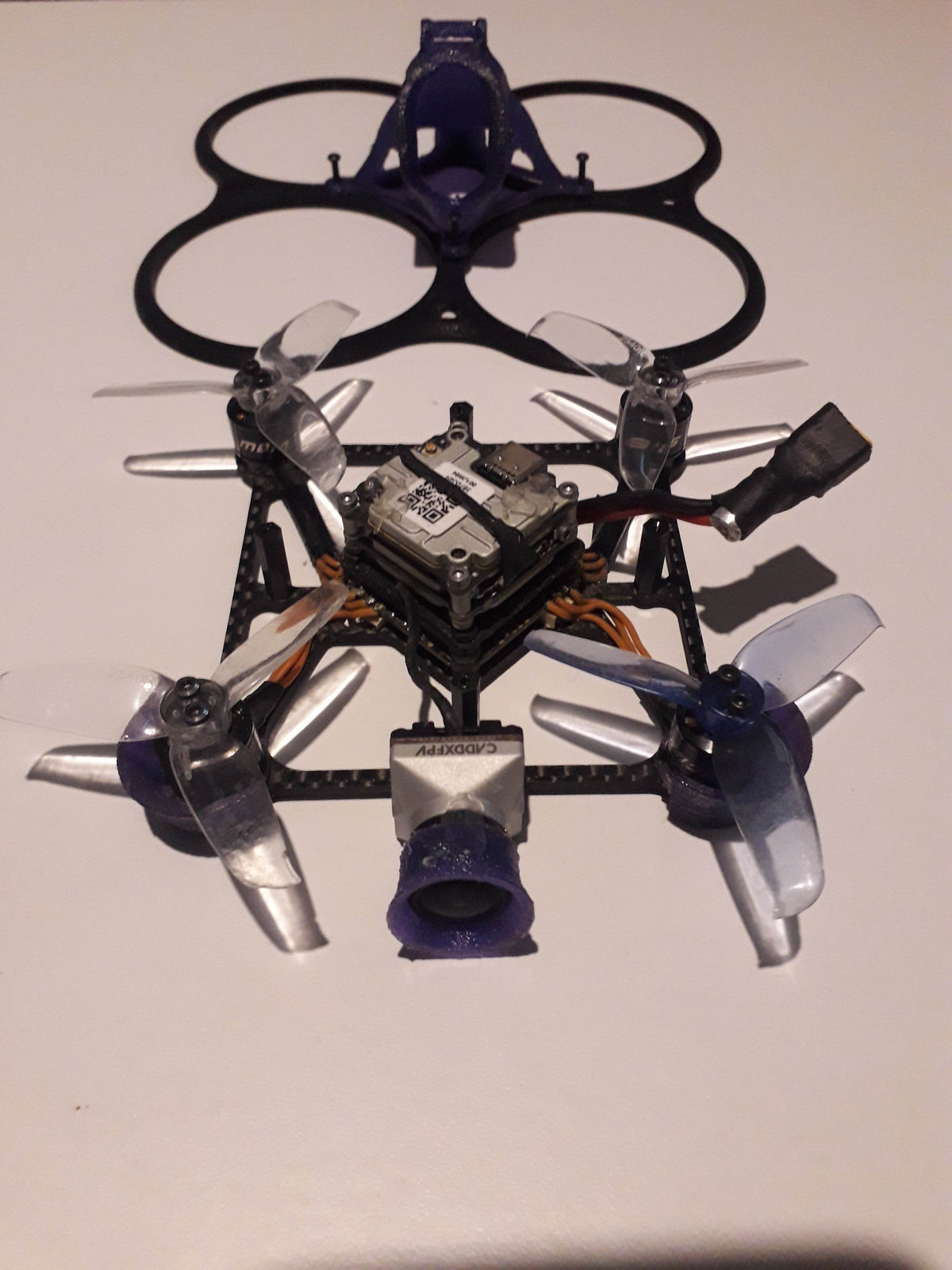

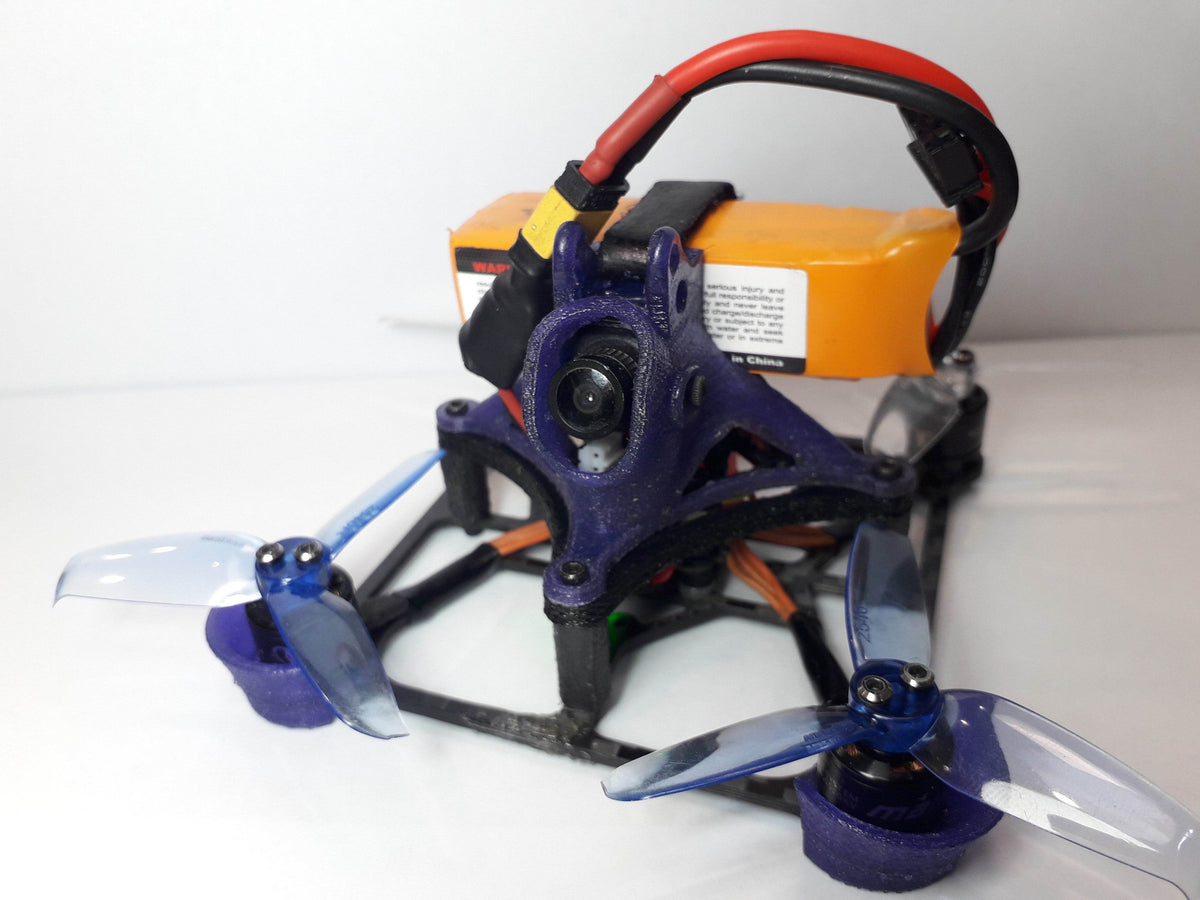

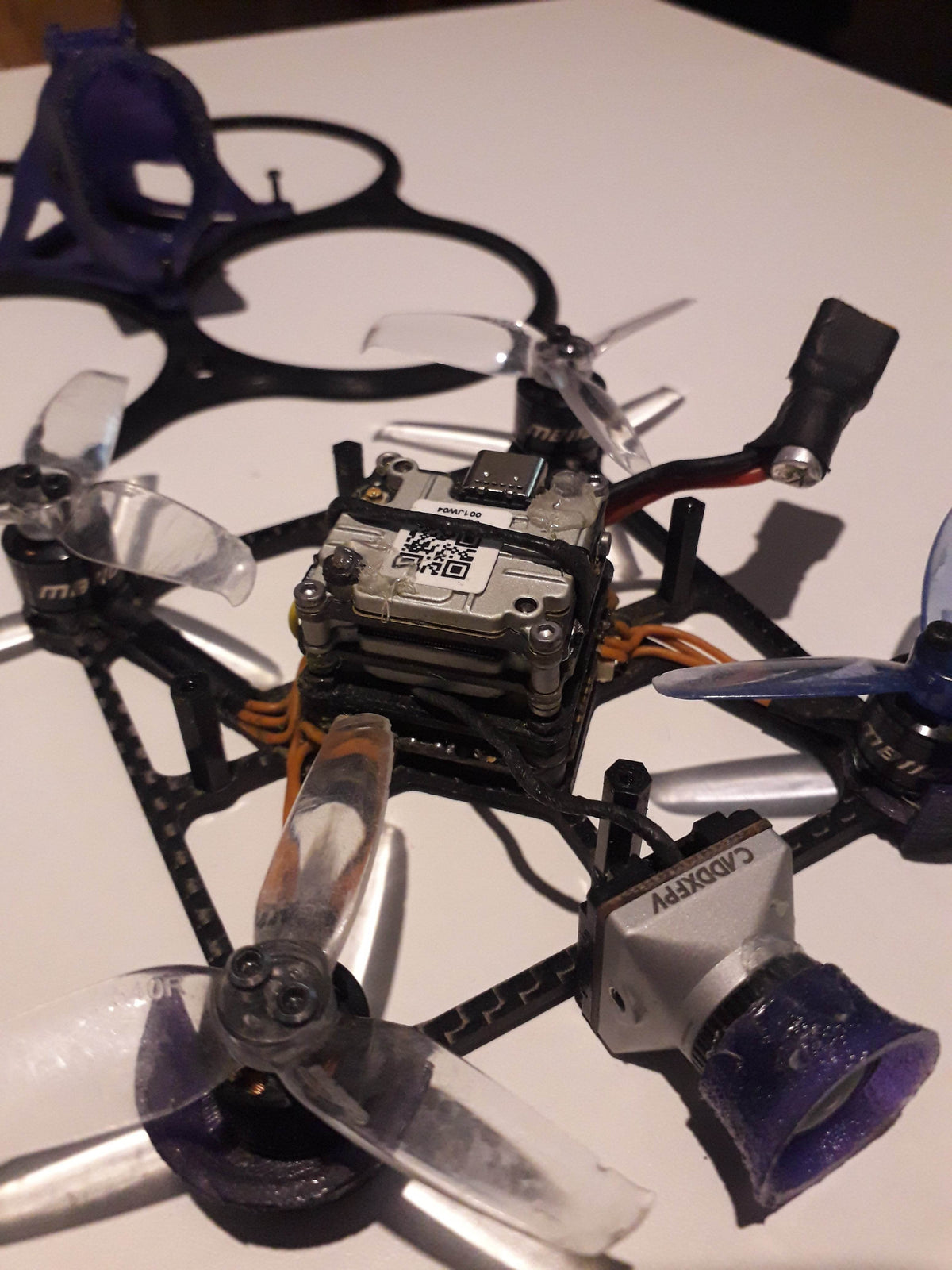

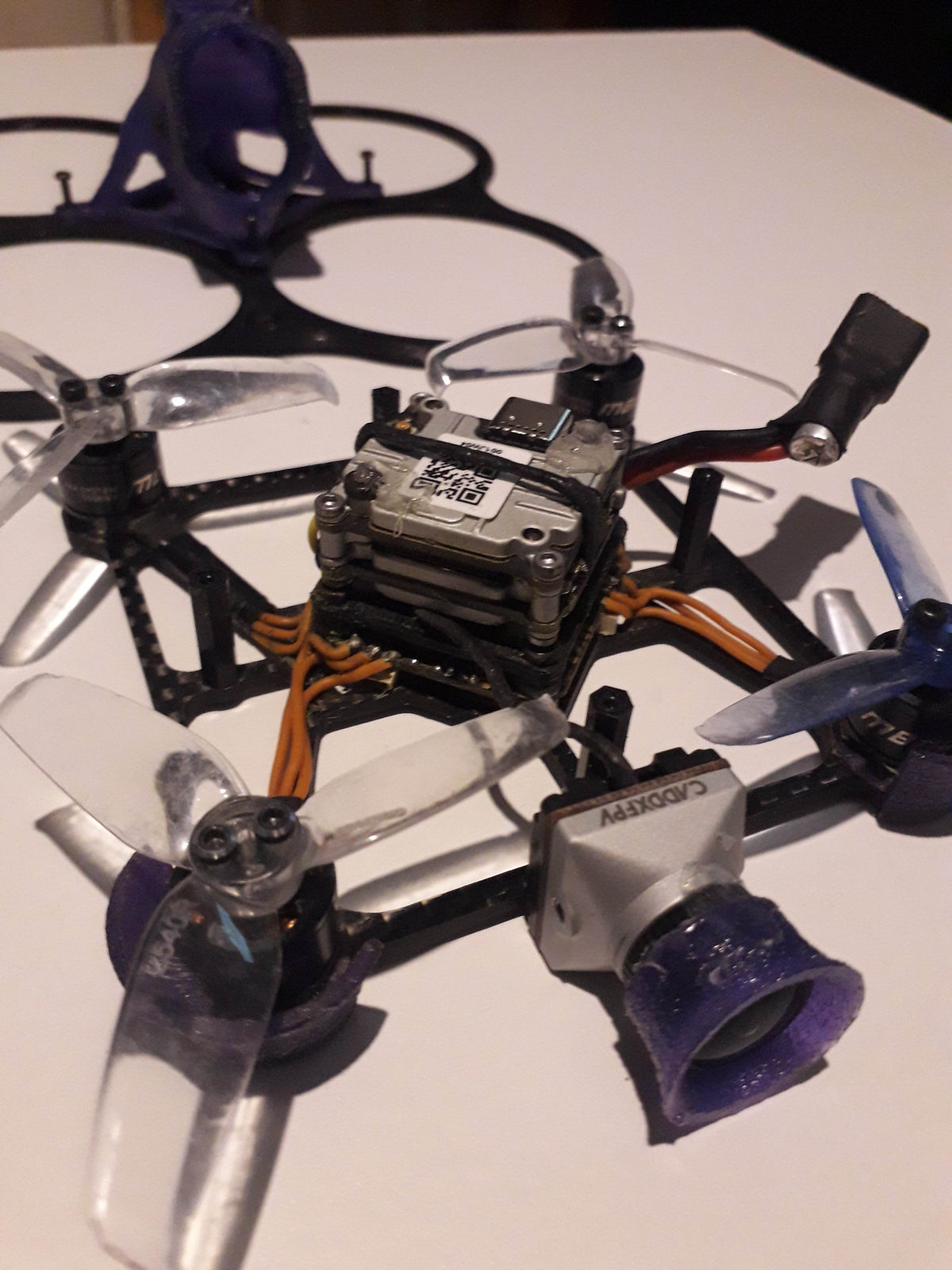

The analogue canopy fits a 14x14 Nano camera and the digital is designed around the original DJI camera and Caddx vista. Both have plenty of air flow to cool the electronics and top mounted battery. Slots for whoop 25.5x25.5- 26x26 and holes for 16x16 boards gives you more options in your choice of electronics allowing you to use both styles at the same time.
