Diatone RGB LED Board (5V/12V)
Diatone RGB LED Board (5V/12V)
Diatone RGB LED Board (5V/12V)

Diatone RGB LED Board (5V/12V)

Regular price $5.99 Sale

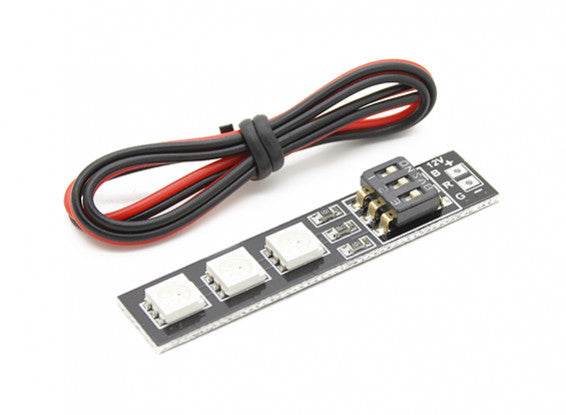

Diatone RGB LED Board comes with three RGB5050 LEDs & one code switch. Seven colors are selectable by means of code switches. This LED board gives an eye-catching effect to your multirotors or planes when illuminated.

Features

  • Comes with a 0.3m long cable, users can cut it to a suitable length
  • Be ware of the positive and negative poles, as well as the insulation
  • Switch the related codes to ON, seven colours are selectable

Specifications

  • Voltage Input: 5V
  • Size: 47 x 10mm
  • Weight: 2g



GB LED Board 5050/12V

The RGB LED Board 5050/12V is designed for the Multi-rotors & FPV Quad-rotors with 3S LiPoly power or 12V BEC.  It comes with three RGB5050 LEDs & one code switch. Seven colours are selectable using the code switches. This LED board gives an eye-catching effect to your multi-rotors or planes.

Features:
• Seven colours are selectable

Specs:
Input Voltage: 10~13V DC, 3Cells LiPoly battery or 12V BEC
Size: 47x10mm
Weight: 2g

Included:
LED Board 12V
Cable 0.3m



Dip Switch Settings for Colours

Color Dip Switches
B R G
 Blue ON OFF OFF
 Red OFF ON OFF
 Green OFF OFF ON
 Magenta ON ON OFF
 Cyan ON OFF ON
 Yellow OFF ON ON
 White ON ON ON
